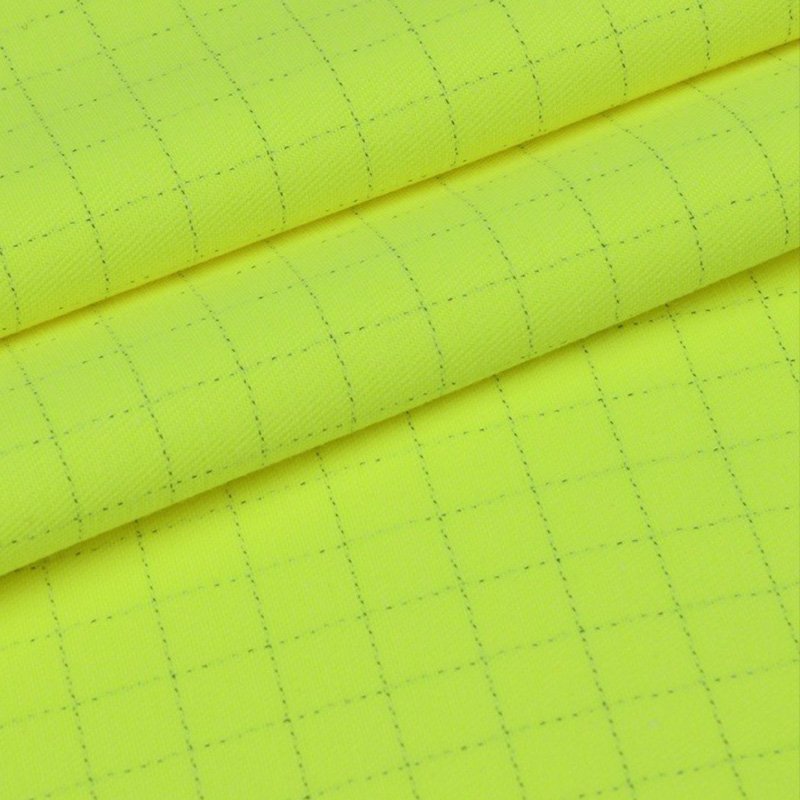

HV-FR-300 — Hi-Vis FR Fluorescent Twill 300gsm with Anti-Static
HV-FR-300 is a fluorescent high-visibility fabric treated with THPC (Proban) flame retardant finish — combining three critical safety functions in a single textile: high-visibility fluorescence, flame resistance, and anti-static protection.
This is not a standard FR fabric with fluorescent dye added. The fluorescent pigments are formulated to meet EN ISO 20471’s strict chromaticity and luminance requirements while surviving the chemical and thermal stress of the FR finishing process. The fluorescent effect must remain visible after 20+ industrial washes — a specification that eliminates most standard fluorescent fabrics from FR applications.
FR efficacy retained after 50+ industrial washes (ISO 15797)
Afterflame Time
≤2 seconds (EN ISO 15025 / GB/T 14644)
Afterglow Time
≤2 seconds
Char Length
≤100 mm
Hi-Vis Standard
EN ISO 20471 — Class 2 (fluorescent background)
Retroreflective Compatibility
Compatible with EN ISO 20471 compliant reflective tape
Fluorescent Colors
Fluorescent Orange, Fluorescent Yellow
Fluorescent Durability
≥20 washes to maintain minimum chromaticity (ISO 20471)
Anti-Static
Standard — 1% conductive carbon fiber (EN 1149)
Shrinkage
≤3% after 50 washes (ISO 6330)
Colorfastness to Washing
Grade 4 (ISO 105-C06)
Colorfastness to Light
Grade 4 (ISO 105-B02)
Tensile Strength (Warp)
≥1000 N (ISO 13934-1)
Tear Strength (Weft)
≥25 N (ISO 13937-2)
Abrasion Resistance
≥25,000 Martindale cycles
Finishing
FR treated + fluorescent dye + anti-static
Standards & Certifications
Standard
Status
EN ISO 20471 Class 2
✅ Hi-Vis — high-visibility clothing for professional use
GB 8965.1-2020
✅ FR — Class B
EN ISO 11612 (A1, B1)
✅ Heat & flame
EN ISO 11611 (Class 1)
✅ Welding
NFPA 2112
✅ Flash fire (cotton variant)
EN 1149
✅ Anti-static — standard, not optional
OEKO-TEX Standard 100
✅ Available upon request
ISO 15797
✅ Industrial wash — 50-cycle certified
Why Three Functions in One Fabric?
Workers in road maintenance, emergency rescue, gas utility, and railway environments face multiple hazards simultaneously:
Hazard
Protection Required
HV-FR-300 Solution
Moving vehicles / traffic
High visibility — fluorescent color + reflective tape
EN ISO 20471 Class 2 certified fluorescence
Flame / flash fire
Flame retardant clothing
EN ISO 11612 certified FR treatment
Explosive atmosphere (gas leak)
Anti-static — no spark generation
EN 1149 certified — 1% conductive fiber standard
Molten metal (cutting/grinding)
Welding protection
EN ISO 11611 Class 1 certified
A worker responding to a gas leak on a roadside needs all three protections simultaneously. HV-FR-300 delivers them in a single fabric specification.
Fluorescent vs. Standard Colors — The Difference
Standard FR fabrics in Orange or Yellow are safety-colored but not fluorescent. Under low-light conditions (dusk, dawn, overcast, tunnel), they blend into the background. Fluorescent fabrics convert invisible UV light into visible light — appearing to “glow” in conditions where standard colors disappear.
Condition
Standard Orange FR
Fluorescent Orange FR (HV-FR-300)
Daylight
Visible
Visible — similar
Dusk/dawn
Poor — blends
Highly visible — fluoresces
Overcast/rain
Poor
Good — UV penetrates clouds
Tunnel/shade
Poor
Moderate improvement
Night (with reflective tape)
Tape only visible
Tape + fluorescent background visible in headlights
Anti-Static — Why It Is Standard (Not Optional)
HV-FR-300 includes 1% conductive carbon fiber as standard equipment, not an optional add-on. The reasoning:
The most common applications for hi-vis FR (gas utility, emergency rescue, fuel tanker loading) involve explosive atmospheres
A static discharge from non-anti-static clothing in a gas-leak environment can be fatal
Adding conductive fiber at the spinning stage costs approximately 3–5% more and adds zero maintenance burden
There is no reason to offer hi-vis FR without anti-static
If EN 1149 certification is not required (e.g., roadside construction without explosion risk), contact us for a non-AS variant. We do not stock it by default.
Inherent FR (IFR) Variant
For programs requiring unlimited wash durability, zero formaldehyde, or chemical splash resistance, HV-FR-300 is also available in an inherent modacrylic/cotton blend:
Road construction, utility, rescue — most specified globally
Fluorescent Yellow
✅ Stock
Railway, airport, some EU markets
Custom Color: Not applicable — fluorescent colors are limited to Orange and Yellow by EN ISO 20471 standard.
Reflective Tape Integration
HV-FR-300 is designed for assembly with EN ISO 20471 compliant retroreflective tape. We supply the fabric only — tape application is performed by the garment manufacturer.
Minimum tape requirement for EN ISO 20471 Class 2:
≥0.10 m² fluorescent background material
≥0.13 m² retroreflective material (tape)
Tape width: ≥50mm
Typical configuration: 2 horizontal bands around torso + 2 bands around each sleeve.
⚠️ Fluorescent-specific care: Fluorescent dyes are inherently less wash-fast than standard dyes. EN ISO 20471 requires the fabric to maintain minimum chromaticity and luminance for 20 washes. After 20 washes, the fluorescent effect gradually fades but the FR and anti-static protections remain fully functional. For extended fluorescent life, wash at 40°C (not 60°C) and hang dry in shade. The FR treatment is not affected by lower wash temperature.
FAQ
Q: What is the difference between EN ISO 20471 Class 2 and Class 3? A: Class 3 requires more fluorescent and reflective material than Class 2 — typically a full-sleeve garment (coverall or jacket with full-length sleeves). HV-FR-300 fabric meets Class 2 background material requirements at 300gsm. Class 3 can be achieved by using this fabric in a full-coverage garment design with additional reflective tape area. The fabric itself is the same.
Q: How long does the fluorescent color last? A: EN ISO 20471 certifies the fabric to maintain minimum chromaticity for 20 industrial washes. In practice, the fluorescent effect is visually acceptable for 30–40 washes before noticeable fading occurs. The FR and anti-static properties are unaffected by dye fading. The garment remains fully protective — it just becomes less bright.
Q: Can I wash this fabric with reflective tape already attached? A: Yes. The tape should be applied by the garment manufacturer before delivery. Wash with tape attached. Do not use fabric softener — it coats the reflective beads and reduces reflectivity. Do not iron directly over the tape.
Q: Which color is more visible — Orange or Yellow? A: Orange is more visible in natural environments (greens, browns, greys) — it offers higher contrast. Yellow is more visible in urban environments (concrete, asphalt). Orange accounts for approximately 70% of global hi-vis FR fabric orders. Yellow is standard for railway and some European markets.
Q: Is anti-static really necessary for roadside construction? A: For general roadside construction without explosion risk, anti-static is not strictly required. However, since the same crew may respond to gas leaks or work near fuel storage, many safety programs specify FR + anti-static + hi-vis as a single standard for all field workers. HV-FR-300 has anti-static built in as standard — it cannot be ordered without it.
Q: Do you supply reflective tape as well? A: No — we supply the fluorescent FR fabric only. Reflective tape is applied by the garment manufacturer. We can recommend compatible tape specifications and suppliers upon request.
